Water Pressure Requirements for Sensor Sanitary Ware
What are the water pressure requirements for sensor sanitary ware? The opera
Read more1. Smart Water-Saving: The sensor intelligently selects between single and dual flush modes based on usage frequency to minimize water waste. High-frequency use triggers a 2-second I-segment flush, while low-frequency use activates a 7-second II-segment Dual Flush.
2. Hygienic and Convenient: The sensor automatically controls water flow, ensuring thorough rinsing with no residual odor, effectively preventing cross-contamination of bacteria
3. Automatic Distance Adjustment: The ultra-compact circuit design, powered by a microprocessor, automatically adjusts the sensing range based on the operating environment—no manual calibration required.
4. Smart Odor Prevention: When the urinal remains unused for an extended period, the flush valve automatically triggers a flush every 24 hours to prevent the P-trap water from evaporating and causing odor backflow.
5. Easy Maintenance: Built-in flow control valve and filter screen allow non-professionals to easily adjust water flow and clean the filter.
6. Installation: Exposed wall-mounted design, ideal for all types of renovation projects.
7. Smart Power Saving: Controlled by a low-power chip with a built-in energy-saving mode for ultra-low power consumption and enhanced efficiency (DC models use 4 AA alkaline batteries, with a quiescent current ≤60μA).
8. Low Voltage Alert: When battery voltage drops below 4.6V, the red indicator flashes to signal battery replacement
9. Power Supply Options: AC, DC, or Dual AC/DC power supply available; the dual mode supports automatic soft switching.
Power Supply: DC 6V
Static Power Consumption <30uA
Battery life: 1.5 years (based on 200 activations per day)
Sensor detection range: 30–80 cm, adjustable via remote control; factory default set to 65 cm
Inlet Pipe Size G1″(DN25)
Operating Water Pressure: 0.3 MPa – 0.7 MPa
Rated Flow: 9–15 L/cycle (at 0.3 MPa water pressure)
Operating Temperature: 1–40°C
Ambient humidity: ≤ 95% RH

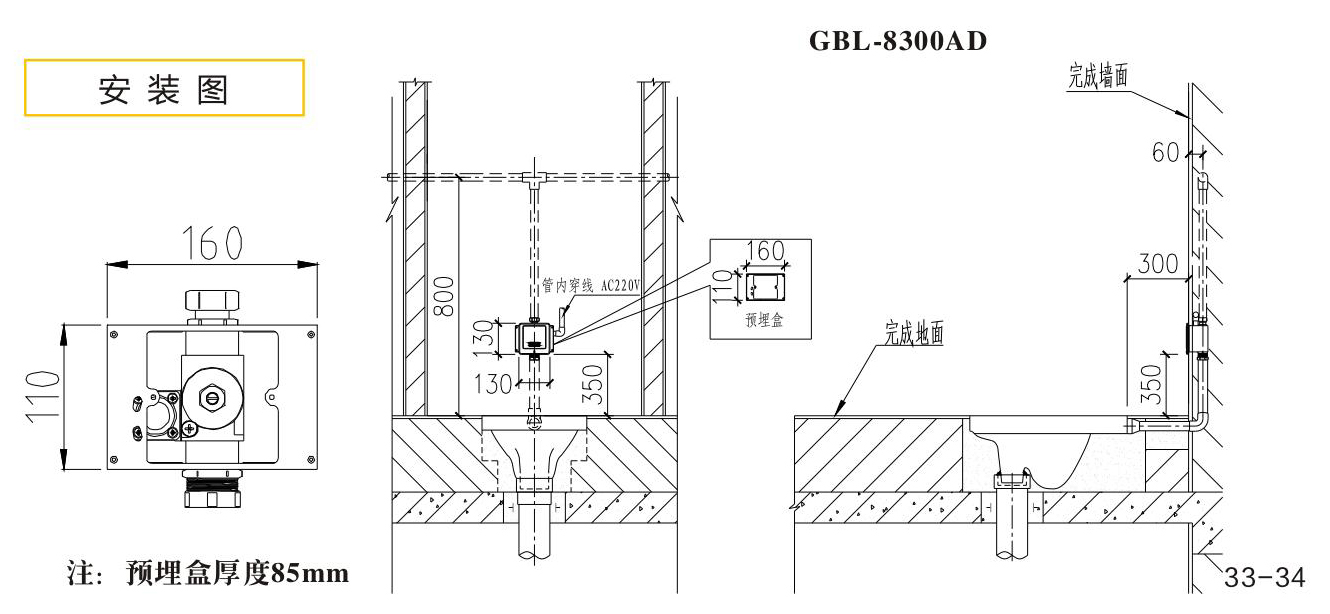

| Toilet Sensor Installation Diagram | Toilet Sensor Installation Diagram | |
Toilet Sensor Flush Valve Concealed Box | ![]() |
